Diamond Powder & Micron Powder Range
Monocrystalline Diamond Powder
Nano Diamond Powder
Spherical Diamond Powder
Diamond Compound & Bead Powder
Synthetic diamond powder, micron & mesh sizes graded in-house · mono / poly / nano / spherical · custom particle distributions
Diamond Powder Line — Full Specifications
Monocrystalline Diamond Powder (Grit Size & D50)
Synthetic monocrystalline diamond powder with blocky, high-strength crystals for grinding wheels, saw blades, lapping and polishing of hard materials. Micron powder is graded in-house to tight particle-size distribution so tools cut consistently from batch to batch.
| Type | Synthetic monocrystalline diamond |
| Size range | Micron powder & mesh sizes, graded in-house |
| Morphology | Blocky, high crystal strength |
| Quality control | Per-batch particle distribution inspection |
| Typical applications | Grinding wheels, saw blades, lapping, polishing |
Polycrystalline Diamond Powder (PCD)
Polycrystalline diamond powder (PCD) is synthesised by the explosion method and is made of primary grain aggregation of 4-7nm. Compared with monocrystalline diamond it has higher toughness and better self-sharpening, giving a higher removal rate with fewer scratches and more consistent polishing performance. With high abrasion resistance its grinding force decreases slowly as grinding time increases. Suitable for super-hard materials such as sapphire substrates, optical crystals and super-hard ceramics.
| Model | Grade | D10 (µm) | D50 (µm) | D95 (µm) |
| PCD 1/8 | Standard size | ≥0.06 | 0.10-0.14 | ≤0.21 |
| PCD 1/4 | Standard size | ≥0.11 | 0.20-0.25 | ≤0.40 |
| PCD 0-1 | Standard size | ≥0.40 | 0.48-0.55 | ≤0.72 |
| PCD 0-2 | Standard size | ≥0.70 | 0.90-1.10 | ≤1.50 |
| PCD 2-4 | Standard size | ≥1.80 | 2.70-3.00 | ≤4.50 |
| PCD 3-6 | Standard size | ≥2.80 | 4.00-4.40 | ≤7.00 |
| PCD 4-8 | Standard size | ≥4.00 | 5.50-6.00 | ≤8.60 |
| PCD 5-9 | Standard size | ≥4.70 | 6.30-7.00 | ≤10.00 |
| PCD 5-12 | Standard size | ≥5.20 | 7.20-7.80 | ≤13.00 |
| PCD G3 | Precision size | ≥2.00 | 2.80-3.10 | ≤4.40 |
| PCD G3.5 | Precision size | ≥2.40 | 3.30-3.60 | ≤5.00 |
| PCD G4 | Precision size | ≥2.90 | 3.90-4.20 | ≤6.00 |
Area of use — PCD 1/8 to PCD 0-2: end surface polishing of optical crystal, ultra-hard ceramic, wafer substrate and metal. PCD 2-4 to PCD 5-12: lapping, rough polishing and back thinning of sapphire and wafer substrate. Customizations are available upon request.
Request a PCD sample & quote →
Mesh to Micron — Quick Reference
| Grit size (mesh) | Particle size | Typical use |
| 100 – 400 | 150 – 40 µm | Rough grinding and shaping |
| 600 – 1200 | 25 – 12 µm | Intermediate polishing |
| 3000 – 8000 | 5 – 1.5 µm | Fine polishing and pre-polishing |
| 14000 – 100000 | 1 – 0.15 µm | Final polishing and mirror finish |
General industry reference from our technical article Diamond Lapping Powder. GRISH diamond powder is graded and supplied in micron (D50) sizes — if you work in mesh or grit numbers, send us the grit you need and we will confirm the matching D50 grade and feasibility.
Nano Diamond Powder (Detonation)
Detonation nano diamond powder for super-finishing, electroplated coatings, lubricant additives and advanced composites. Surface-treated grades available for dispersion stability in your carrier system.
| Type | Detonation nano diamond (DND) |
| Size class | Nanometer scale |
| Treatment | Surface-treated grades for dispersion |
| Packaging | Sealed, moisture-controlled |
| Typical applications | Super-finishing, coatings, composites, additives |
Spherical Diamond Powder
Spherical diamond powder whose rounded morphology gives uniform packing density and controlled flow — used in thermal management materials, advanced tooling and applications where particle shape drives performance.
| Type | Spherical synthetic diamond |
| Morphology | Rounded, flow-optimized |
| Size range | Micron grades |
| Customization | Distribution & treatment per application |
| Typical applications | Thermal materials, advanced tooling |
Diamond Compound, Paste & Bead Powder
Diamond compound (paste) and bead powder for manual polishing, mold & die finishing and metallographic preparation — the convenient format of the same in-house graded diamond, with color-coded grades for shop-floor clarity.
| Type | Diamond compound / paste, bead powder |
| Grades | Color-coded micron grades |
| Base | Oil-soluble / water-soluble |
| Packaging | Syringes, jars |
| Typical applications | Mold & die polishing, metallography, manual finishing |
Every batch graded and inspected in-house against tight particle-size distribution targets — the difference between a powder spec sheet and powder that behaves the same drum after drum.
A Real Factory, Not a Trading Company
GRISH has manufactured precision abrasives since 2002 in a 12,000 m² factory & laboratory with imported coating and converting equipment. Over 20 years of joint R&D with universities turned research projects into 49 invention patents — and GRISH co-authored 5 industry standards for polishing materials. Films are coated, converted and inspected in-house, so consistency and lead time stay under our control, not a middleman’s.
- ISO9001 quality command across man, machine, material, method & environment
- Imported production equipment · 100+ technicians, half with 5–10 years tenure
- 20+ years university joint R&D · 49 patents · 5 industry standards co-authored
- 3,000+ customers, 9,000+ polishing solutions across 12 industries
Certified: ISO 9001 quality · ISO 14001 environmental · ISO 45001 occupational safety
| What buyers compare | GRISH (factory-direct) | Typical trading company |
|---|---|---|
| Custom grades, widths & die-cut | Made on our own lines to your spec | Limited to whatever stock exists |
| Batch consistency & traceability | In-house coating, QC records per batch | Varies by whichever factory supplied |
| Technical support | R&D engineers who formulate the abrasives | Sales reps relaying questions |
| Lead time control | Production schedule under our control | Dependent on upstream factories |
| Price structure | Factory price, no middle layer | Factory price + trader margin |
From Specs to Samples in 3 Steps
1. Send Your Specs
Application, micron grade, format and estimated quantity — or just describe your process if unsure.
2. Engineer Review & Quote
Our application engineers confirm the right film and send a factory-direct quotation within 24 hours.
3. Free Sample & Trial Order
Qualified B2B buyers receive free samples. Validate on your line before committing to volume.
Built for Your Application
Semiconductor & Electronics

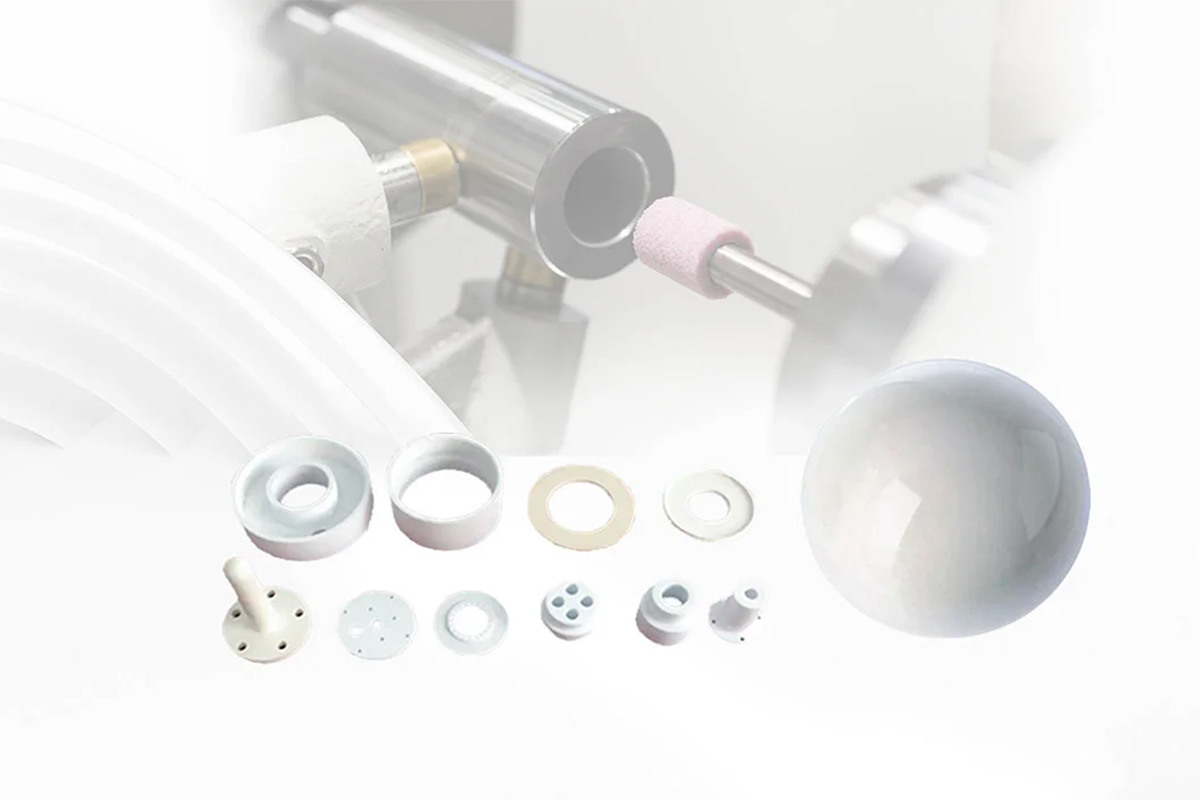

Ceramics & Hard Materials
